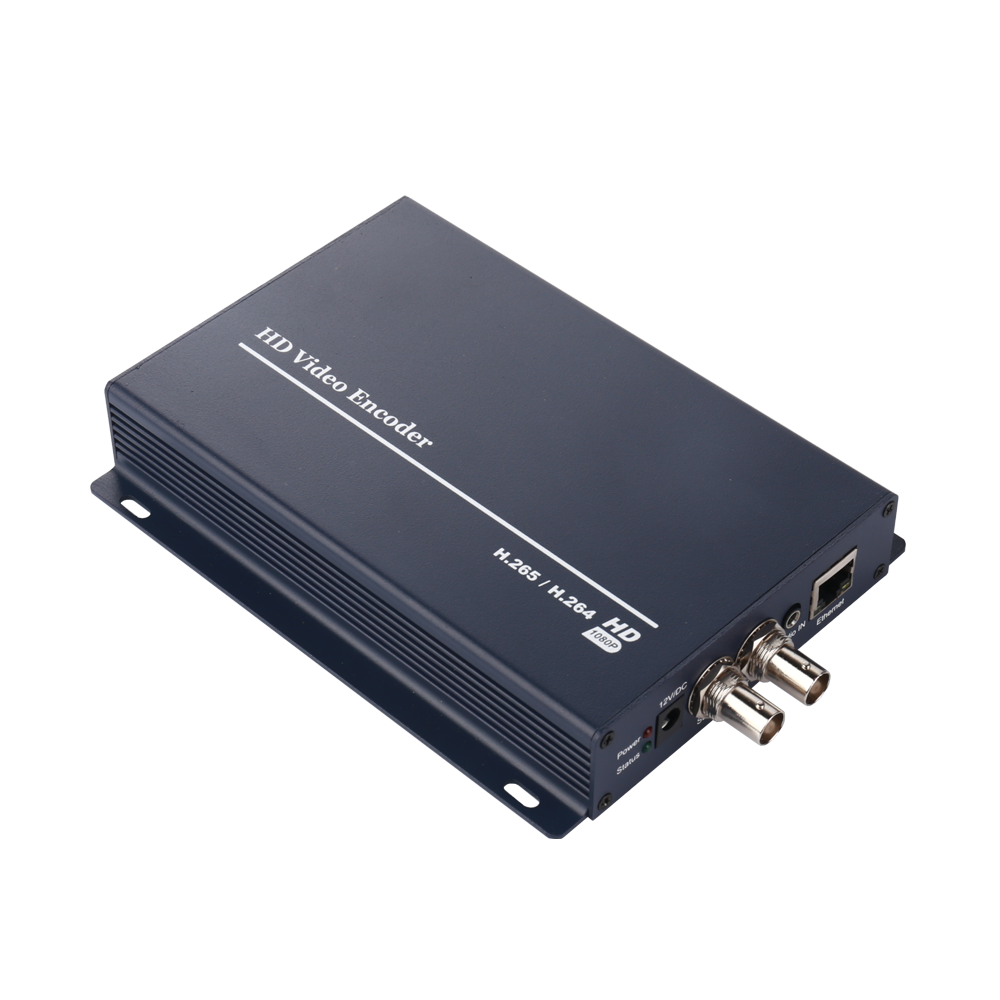

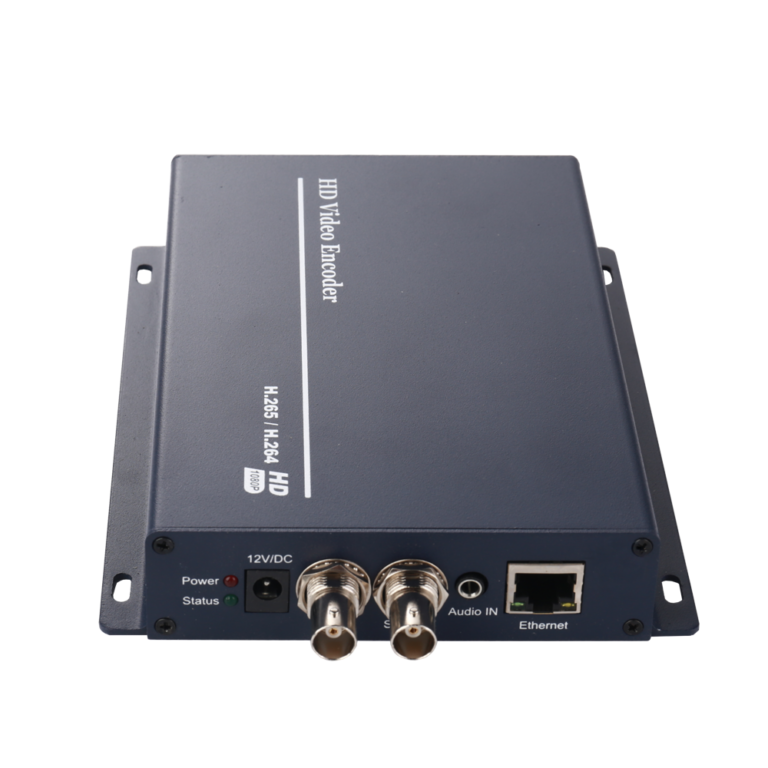

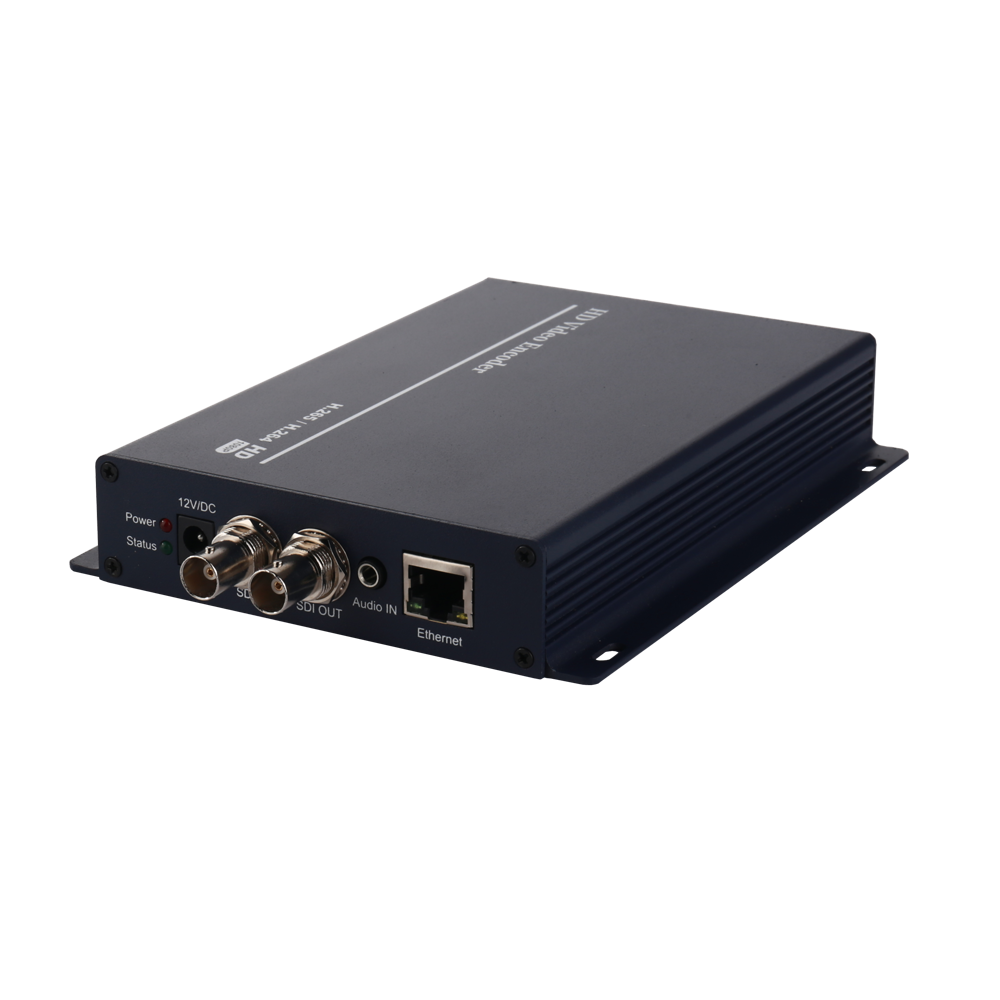

E1005W-SDI 1080p 60fps loop out video encoder SDI video input...
Read MoreE1005W-SDI 1080p 60fps loop out video encoder
SDI video input to IP streaming encoder with loop out function.
Key Features
1080p 23.98/24/25/29.97/30fps
1080p 50/59.94/60fps
1080i 50/59.94/60fps
720p 30/50/59.94/60fps
Any other resolutions 1920×1200 or less.Multi stream form HTTP / SRT / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF.
High compatibility H. 264 and high-performance H. 265 are both supported.
HD-SDI (1.485 Gbps) and 3G-SDI (2.97 Gbps)
Secondary BNC output port that passes along the exact same SDI video signal (loop-out).
- Support additional independent 3.5mm audio input, embedded into the network video stream.
Specifications
| Part Number | E1005W-SDI |
| Video Input | SDI |
| Audio Input | SDI embedded audio, 3.5mm analog stereo audio |
| Video Format | H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
| Resolution | Up to 3840×2160@60fps for HDMI input |
| Wi-Fi | Optional |
| Streaming Protocols | HTTP / SRT / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF. |
| Audio Format | AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
| Control Method | Web based management – IP 192.168.1.168 |
| Dimension (L × W × H) | 185 x 128 x 28 mm (7.28″ x 5.04″ x 1.10″) |
| Weight | 550 g (1.21 lbs) |
Product Details

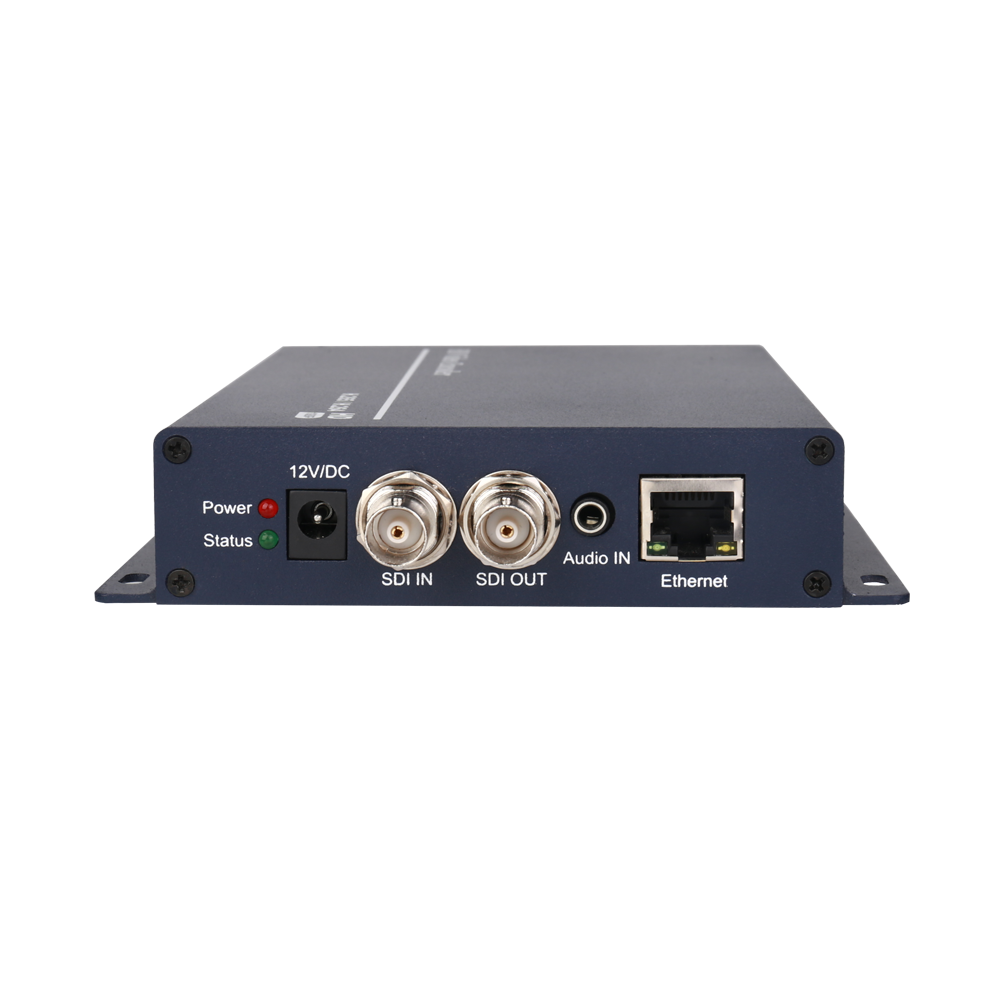

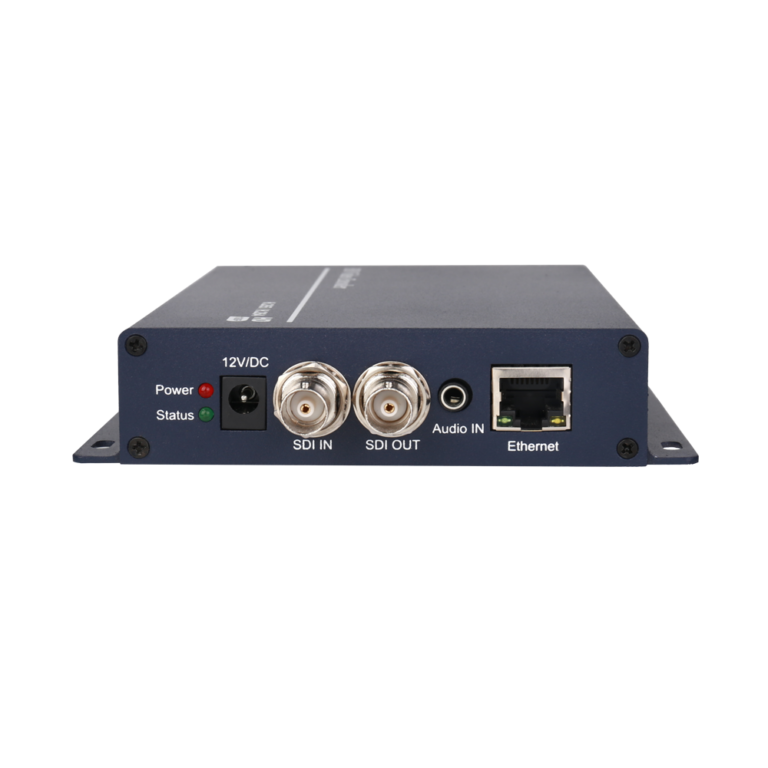

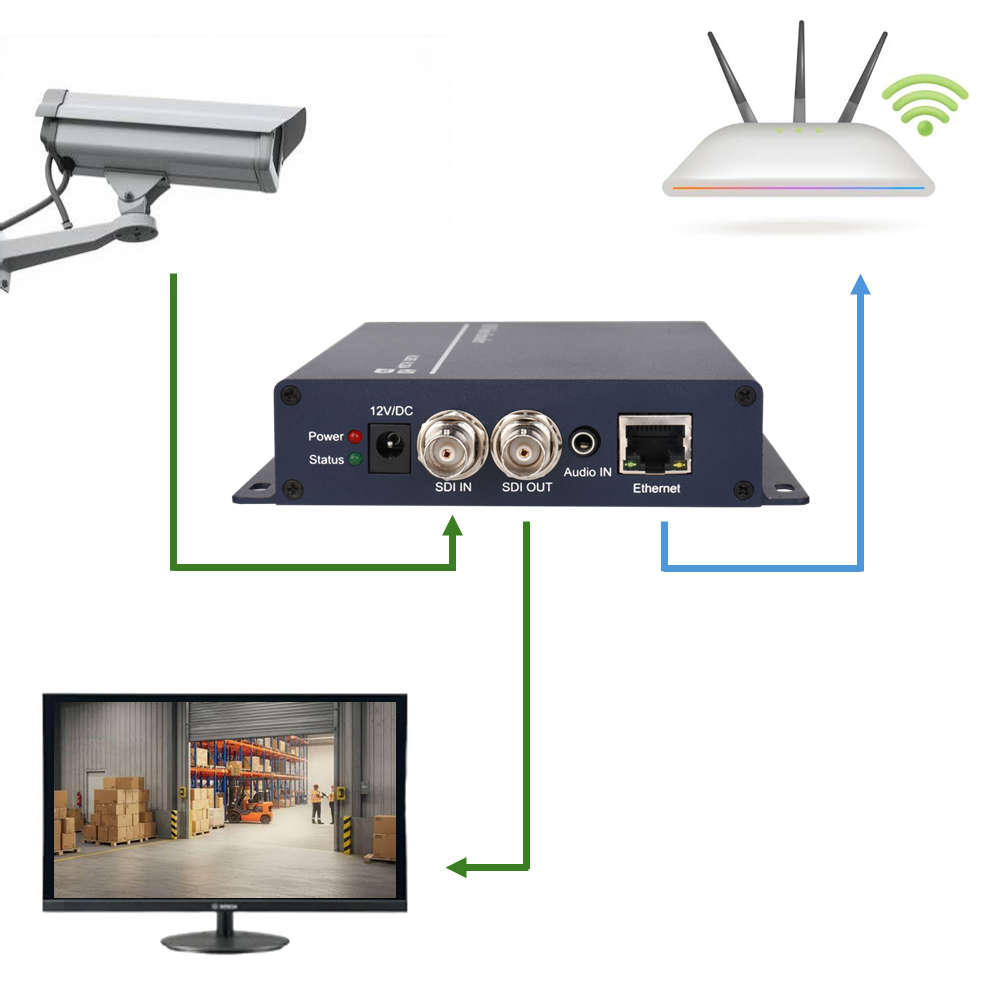

SDI Input & Loop-Through Output
With SDI loop-through output, the encoder allows local video monitoring while encoding and streaming. Keep an eye on your source signal without interrupting the streaming.

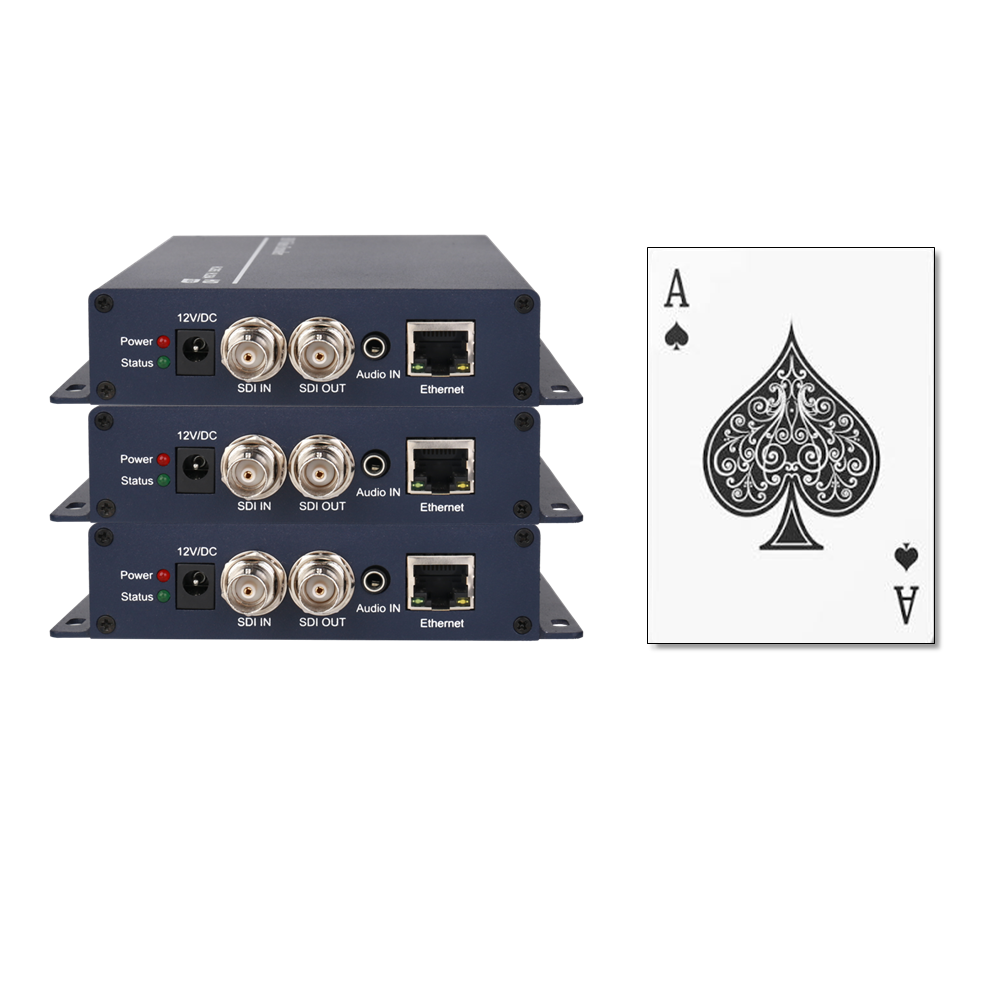

Your Ace in a Compact Package
With a 185 x 128 x 28 mm (7.28″ x 5.04″ x 1.10″) dimension and 550 g (1.21 lbs) weight, you can set this tiny E1005W-SDI almost anywhere. A small device with a winning hand.
H.265 new generation
30%–50% of the bitrate at the same image quality. smaller size and faster. Born for 4K high definition.

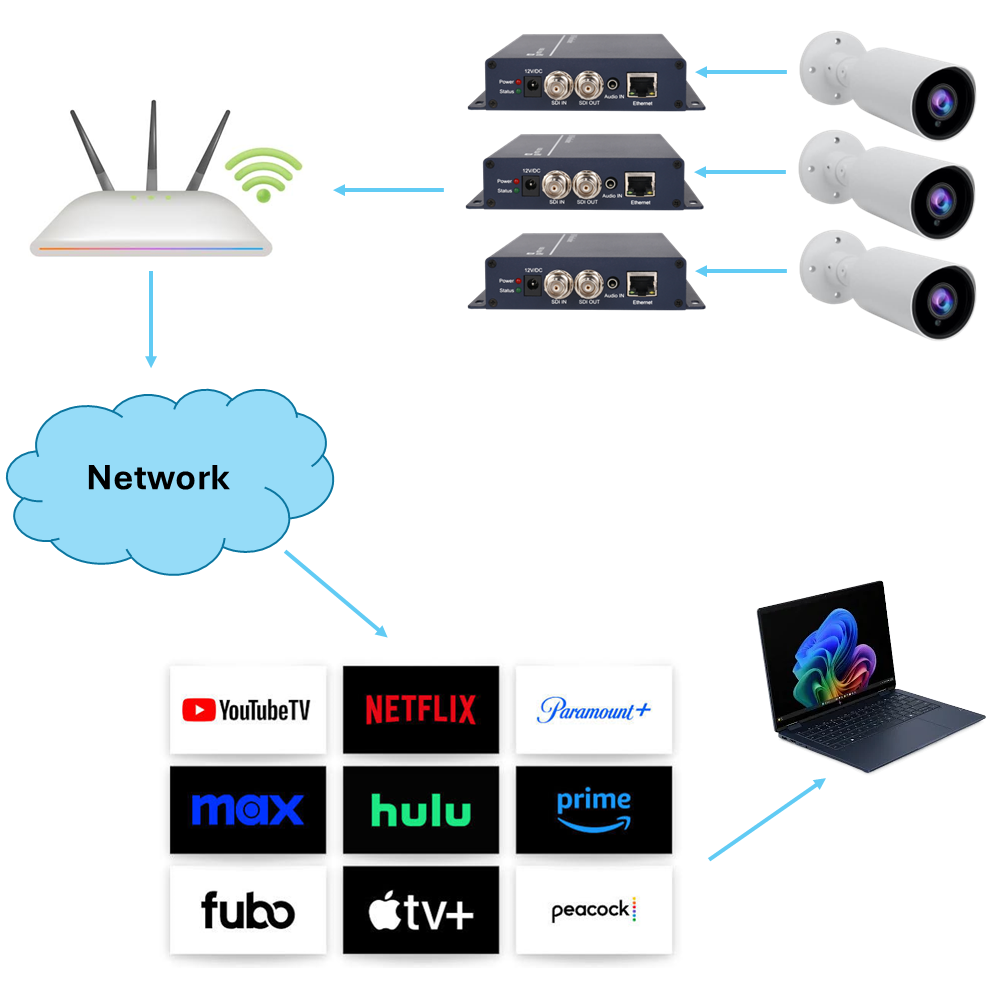

Connect to Your Streaming Workflow
The E1005W-SDI supports popular streaming protocols, making it easy to stream to platforms such as YouTube Live, Facebook Live, Twitch, and TikTok LIVE.
Accessories and Customize
Product
We can provide you with laser logos, print logos. Also, can print your verified codes on the product.
Power Adapter
We have different standards to choose: American, European, British, Australian and more. The power adapter voltage, current and cable length can be customized.
User Manual
We provide not only multiple languages user manuals, but also other customization requirements, such as full-color printing or different material papers.
Packaging Box
Full-color logo, all kinds of materials, customizable content.
Remote Encoder Management & Control
The remote encoder management & control feature allows you to control and modify encoder settings without needing to physically access the equipment cabinet. As long as you have an internet connection, you can securely access the encoder to adjust its settings, reboot the device, or living streaming functions ANYWHERE. Please contact our professional engineer if you want to test this feature.
Frequently Asked Questions
Q: Does it support streaming to multiple platforms at same time?
A: Yes, it supports multi-stream output. Like YouTube, Facebook, Twitch, and others. If you are not sure, you can get professional reply from our experts quickly.
Q: What about after-service?
A: Of course! If you have any problem with technical or product quality, we will offer service for you. All the reasonable services are free for sure.
Q: Can I mix external analog audio with the HDMI video?
A: Yes, this product has audio input. The audio signal will perfectly mix with the video input signal.
Q: What is the purchasing process?
A: After a quick communication, our experts will provide a solution that suits you. We will communicate with you through text, email, phone, video call and other ways that you prefer to confirm the samples. Send out the samples to you and get tested by your side. Finally, we can confirm the order.
