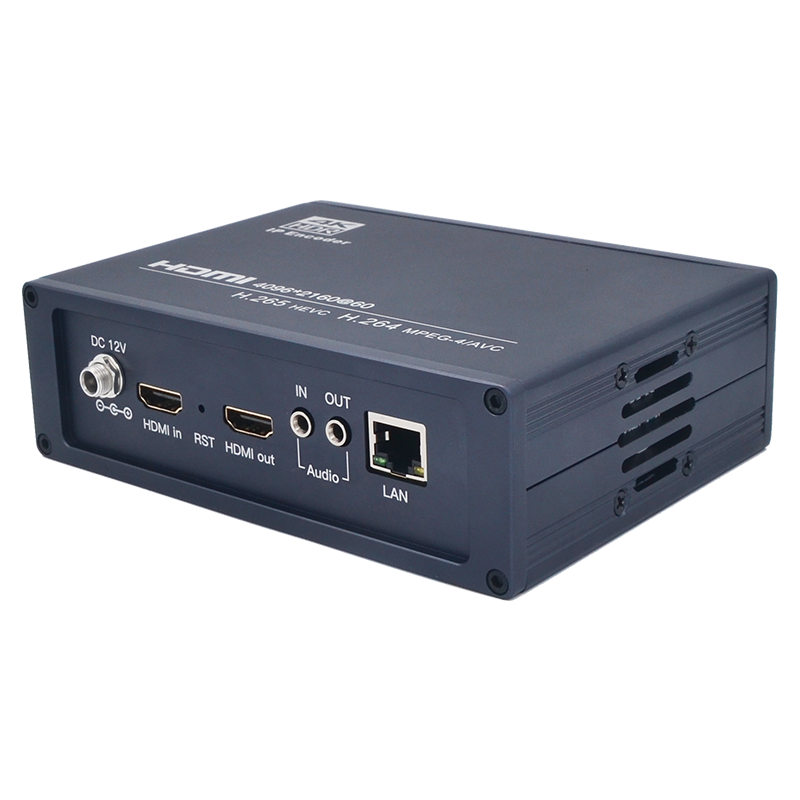

E1026 4K60 H.265 HDMI Loop-out Video Encoder Pixel-perfect Zero-latency Loop-out...

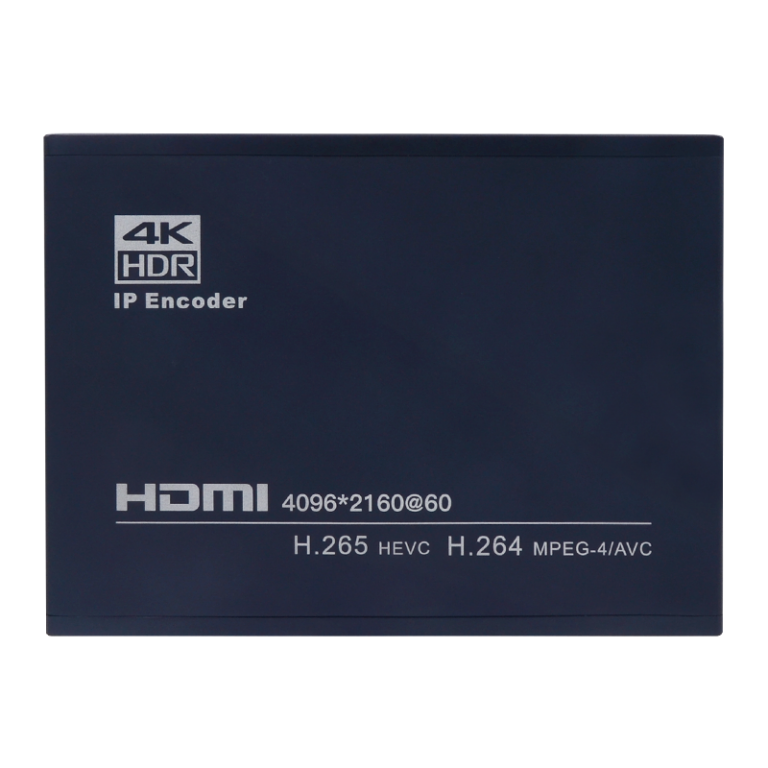

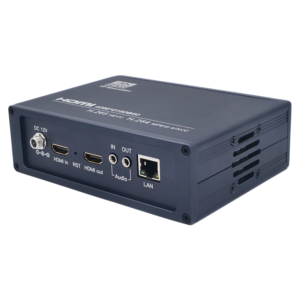

Read MoreE1026 4K60 H.265 HDMI Loop-out Video Encoder
Pixel-perfect Zero-latency Loop-out Monitoring
Key Features
-
High Resolutions. Up to 4K SMPTE 4096×2160@60fps / 3840×2160@60fps / 2560×1440@144fps HDMI input and encoding. Also support more common resolutions.
-
Multi stream form HTTP / SRT / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF.
-
High compatibility H. 264 and high-performance H. 265 are both supported.
-

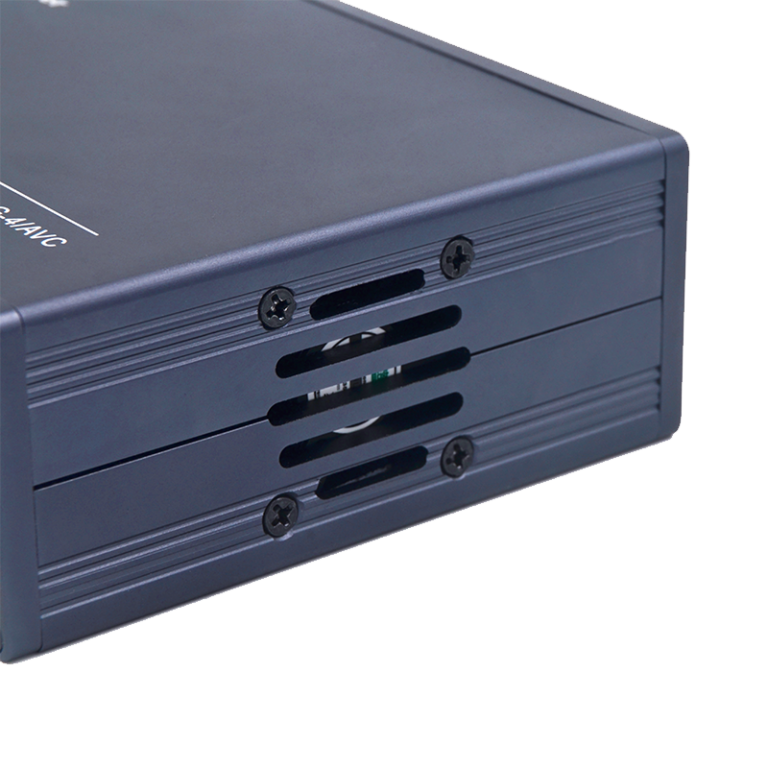

Aluminum alloy shell with industrial-grade fan cooling.
-

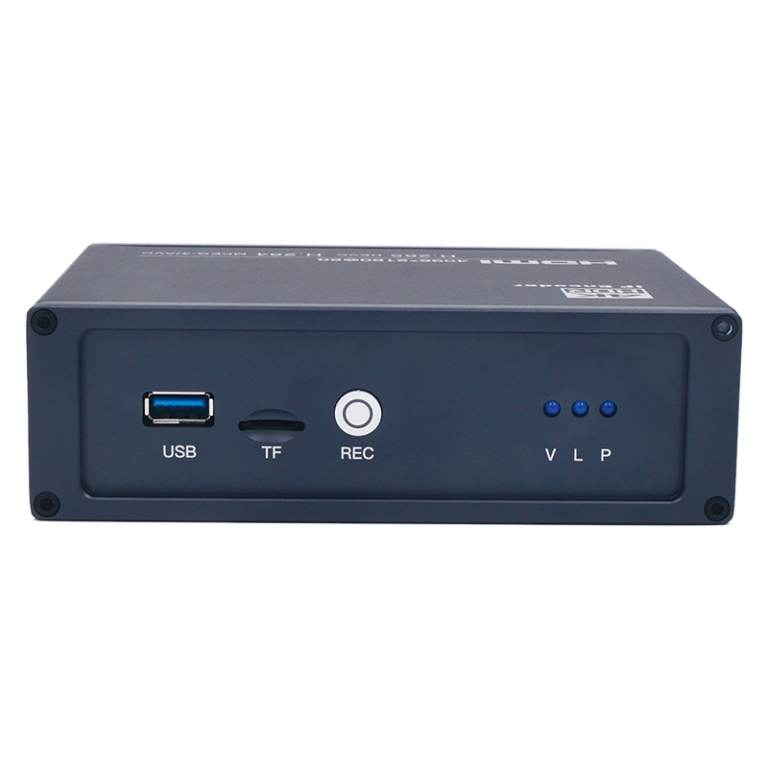

One click Recording. What’s more, support USB 3.0/TF card in NTFS/ exFAT/FAT32 format, with SAMBA server built-in, and video can be viewed through network.

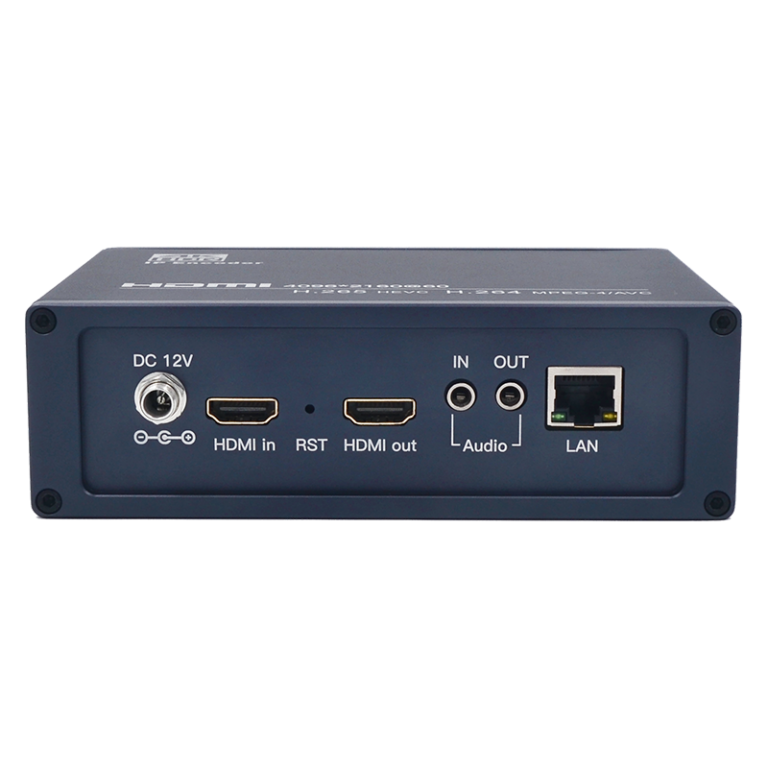

- Hardware grade loop-out, zero delay, same image quality
Specifications
| Part Number | E1026-4K |
| Video Input | 1x HDMI 2.0 |
| Audio Input | HDMI embedded audio, 3.5mm analog stereo audio |
| Video Format | H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
| Resolution | Up to 3840×2160@60fps for HDMI input |
| Wi-Fi | Wi-Fi 6 optional |
| Streaming Protocols | HTTP / SRT / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF. |
| Audio Format | AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |

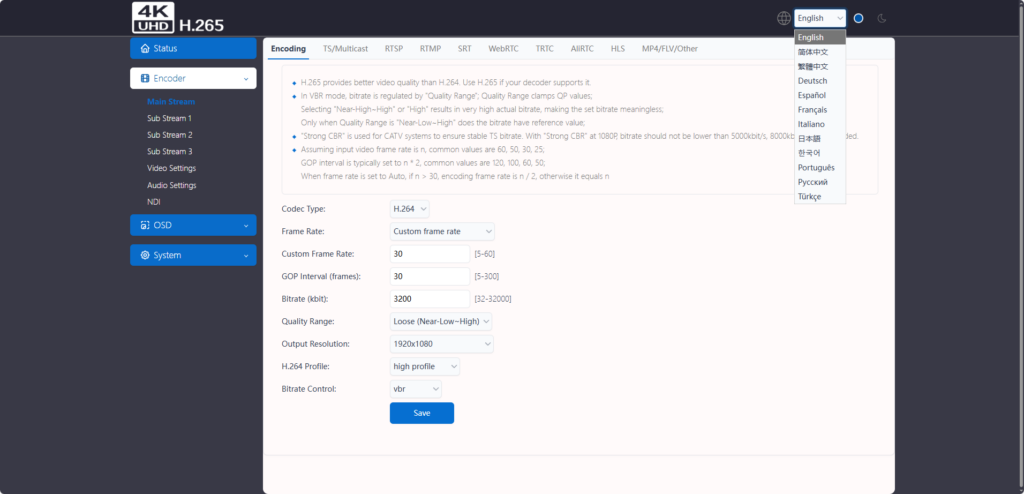

| Control Method | Web based management – IP 192.168.1.168 |
| Dimension (L × W × H) | 150 x 110 x 45 mm (5.91″ x 4.33″ x 1.77″) |
| Weight | 500 g (1.10 lbs) |
Product Details

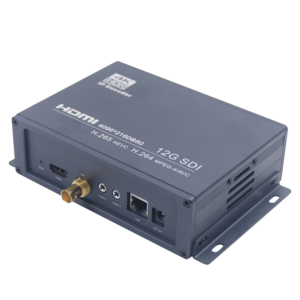

The E1026V-4K employs a more efficient encoding core, capable of handling 4K 60Hz encoding tasks. It is smaller and lighter, and can stably complete high-definition video encoding for extended periods.
Lighter, stronger, more stable

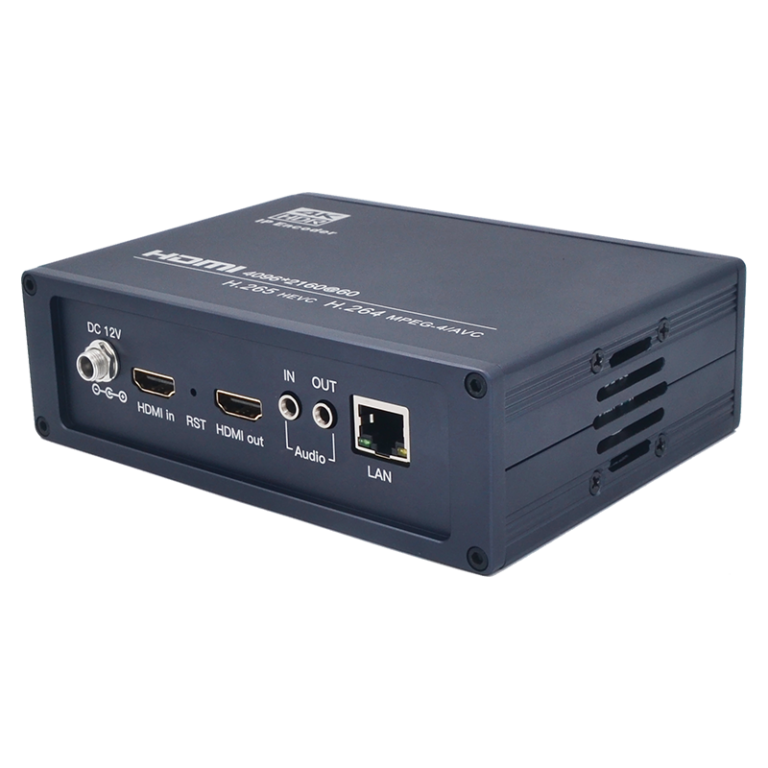

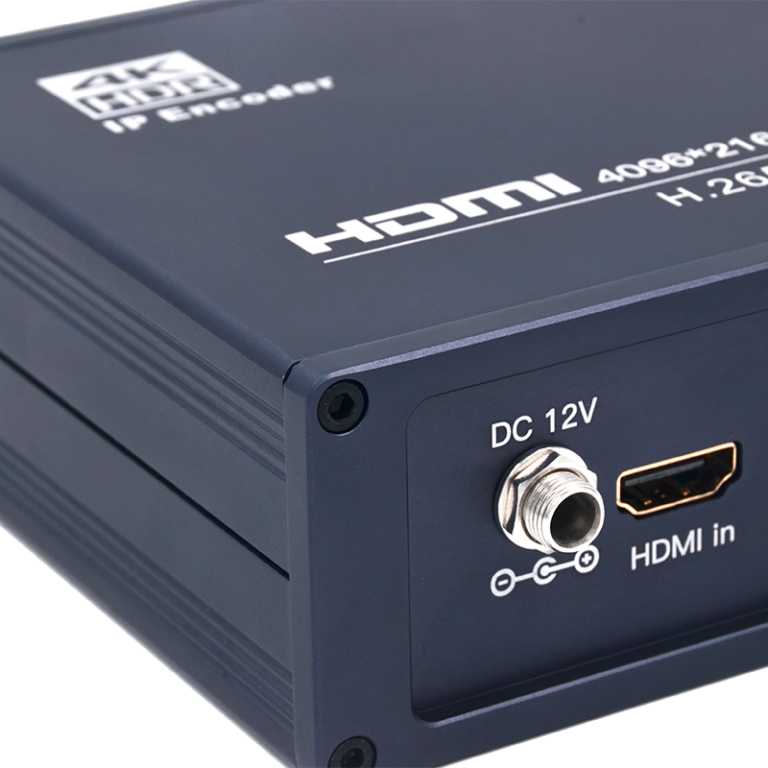

Multiple interface support

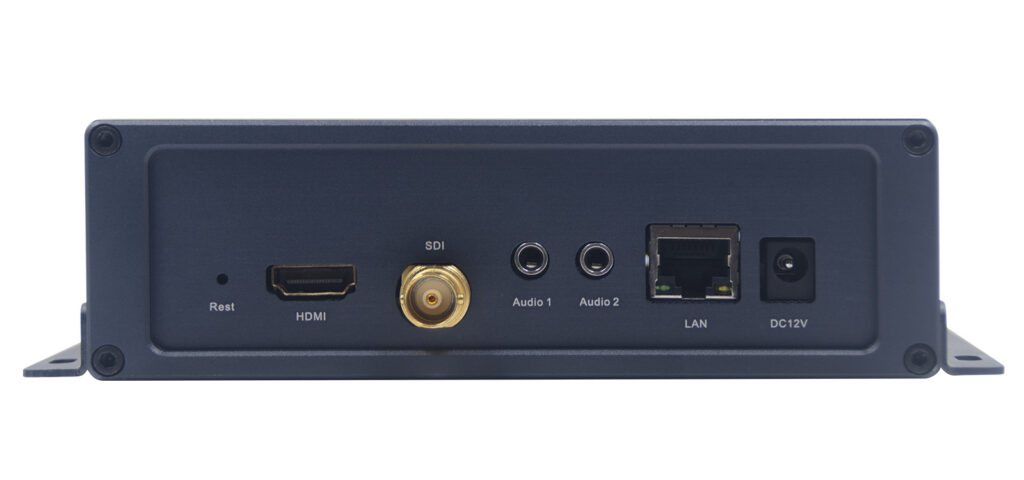

Support both SDI and HDMI video port. It is fully compatible with both SDI and HDMI video sources. A dedicated audio line connector ensures perfect audio transmission as well.

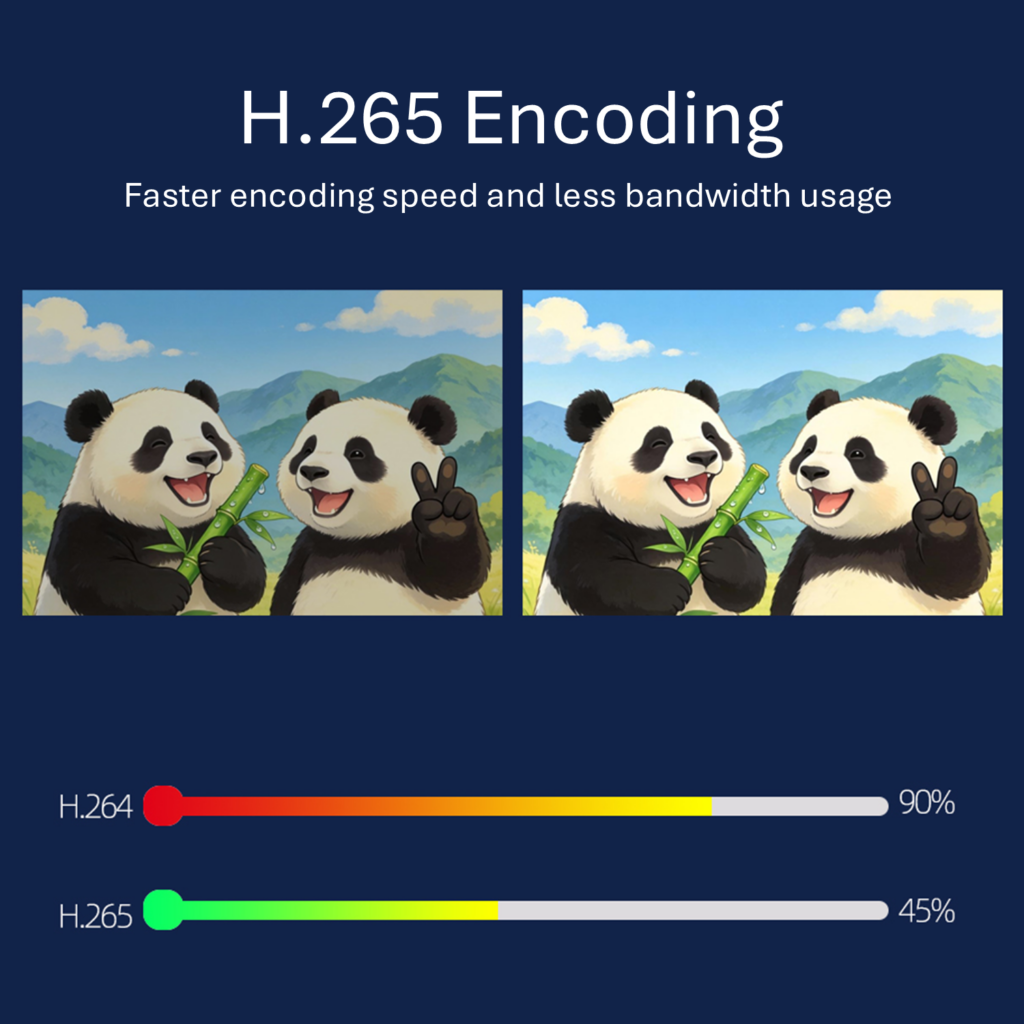

H.265 new generation
30%–50% of the bitrate at the same image quality. smaller size and faster. Born for 4K high definition.

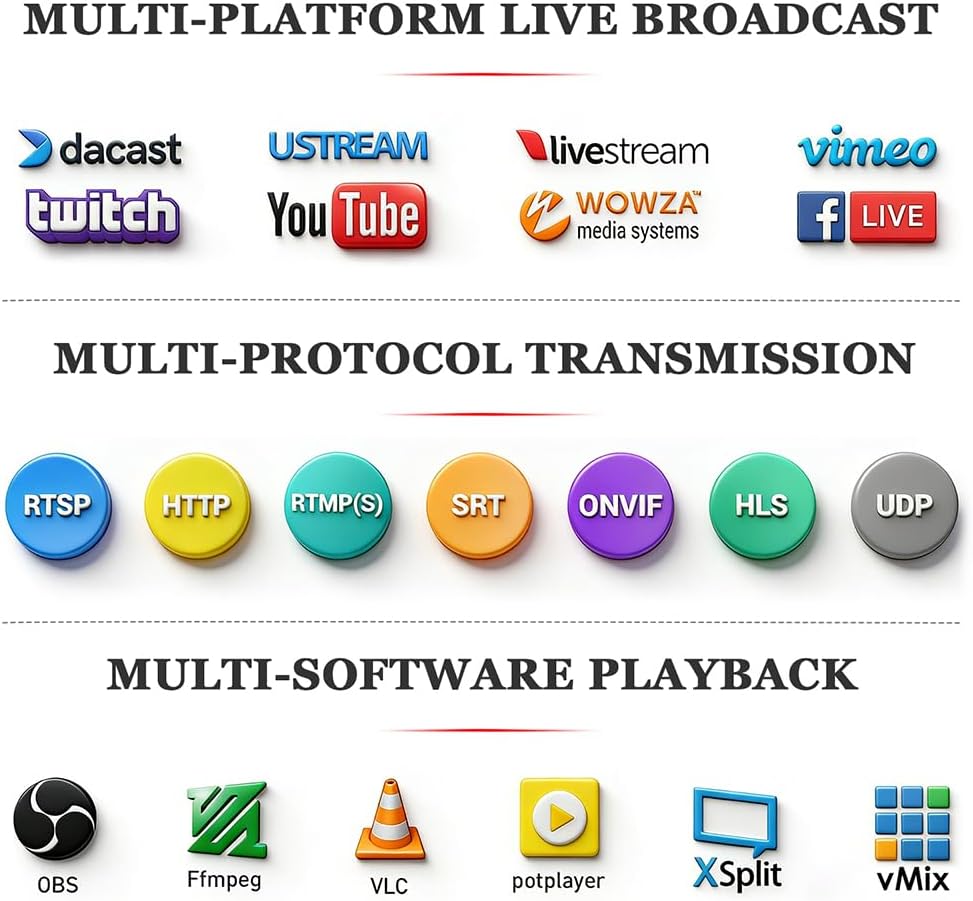

Supports high-definition video streaming on mainstream platforms
The encoder can directly push the stream, making it more convenient.

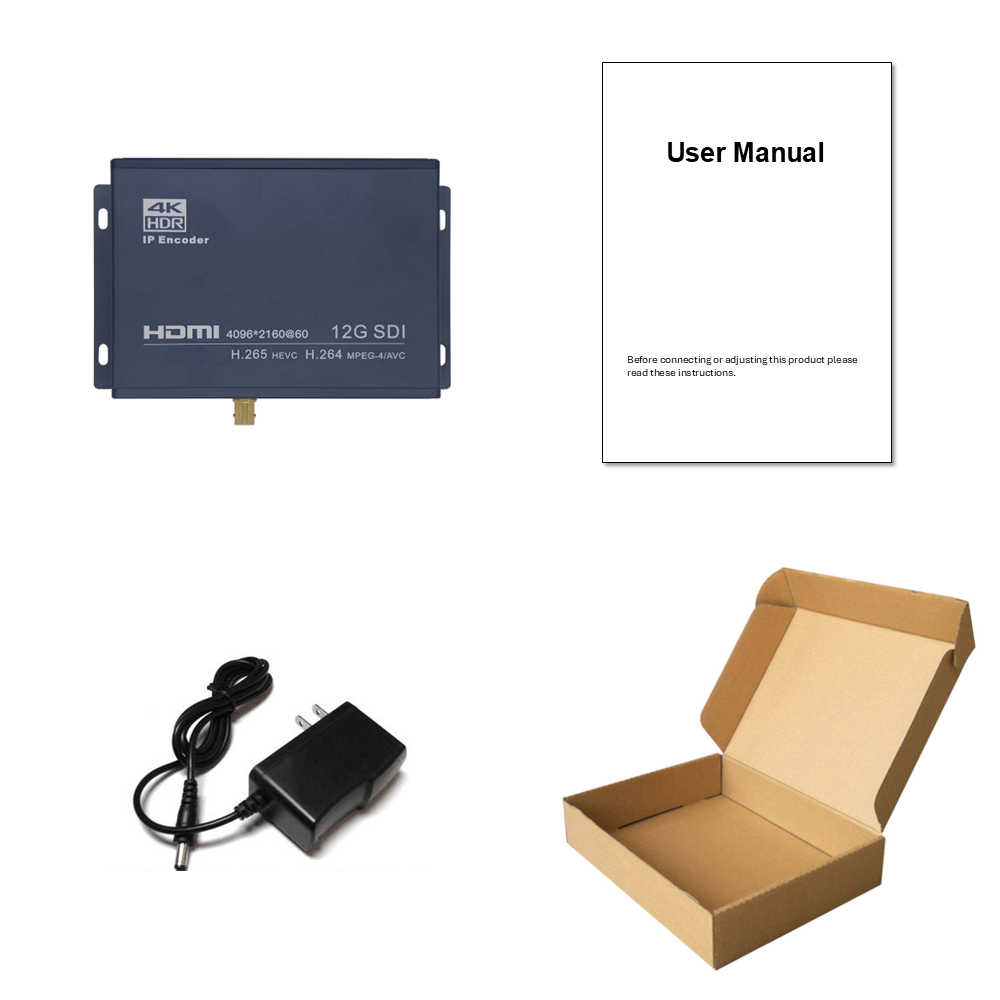

Accessories and Customize
Product
We can provide you with laser logos, print logos. Also, can print your verified codes on the product.
Power Adapter
We have different standards to choose: American, European, British, Australian and more. The power adapter voltage, current and cable length can be customized.
User Manual
We provide not only multiple languages user manuals, but also other customization requirements, such as full-color printing or different material papers.
Packaging Box
Full-color logo, all kinds of materials, customizable content.
Remote Encoder Management & Control
The remote encoder management & control feature allows you to control and modify encoder settings without needing to physically access the equipment cabinet. As long as you have an internet connection, you can securely access the encoder to adjust its settings, reboot the device, or living streaming functions ANYWHERE. Please contact our professional engineer if you want to test this feature.
Frequently Asked Questions
Q: Does it support streaming to multiple platforms at same time?
A: Yes, it supports multi-stream output. Like YouTube, Facebook, Twitch, and others. If you are not sure, you can get professional reply from our experts quickly.
Q: What about after-service?
A: Of course! If you have any problem with technical or product quality, we will offer service for you. All the reasonable services are free for sure.
Q: Can I mix external analog audio with the HDMI video?
A: Yes, this product has audio input. The audio signal will perfectly mix with the video input signal.
Q: What is the purchasing process?
A: After a quick communication, our experts will provide a solution that suits you. We will communicate with you through text, email, phone, video call and other ways that you prefer to confirm the samples. Send out the samples to you and get tested by your side. Finally, we can confirm the order.
